Applied Statistics - Project
It is the year 1679, and Robert Hooke is (following a suggestion from Newton) trying to prove the rotation of Earth by the Coriolis force on falling bodies. Your team has an other (better?) idea, namely to measure the gravitational pull on Earth at different latitudes.
However, to obtain the necessary funding to travel North and South and repeat a measurement of g near the poles and equator, you have to prove that you can do it with the necessary precision. The size of the effect is somewhere around 0.5%, and you want to prove the difference with 5 sigma certainty, which thus requires sub-per-mille precision.
Your mission - and you have little choice, but to accept it - is to take up the challenge of making these measurements and proving that at least one of your two experimental setups has the required/desired precision...
The purpose, experimental setup, objectives, and evaluation is described here: Project objectives and evaluation.
You can find recordings of the Friday 27th Experiment Lecture video and Experiment Lecture audio.
Here you can find some notes about Good Experimental And Statistical Practices.
Sign up as a group (or we'll do it randomly for you) by sending a mail to Giulia: Project Group signup
The project groups (Version 3.0, Tuesday the 26th of November) can be found here: ProjectGroups_v3.0_26nov.pdf.
The overview of where to show up (and later do experiments) can be found here: AS2020_NBIoverview_ExperimentalLocations.pdf.
Left: Robert Hooke (1655-1705), Right: The distribution of land and ocean, if Earth's rotation stopped!
Experiments:
The two experiments are classic experiments, and you have almost surely done these before. However, now the aim is learing how to extract, minimize and propagate uncertainties to get a value (in fact two values) for the gravitational acceleration, g, which have as small an uncertainty as possible, but still being consistent with the "true" value (i.e. more precise measurements).
The two experiments are:

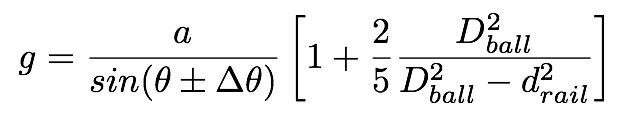

Left: Pendulum experiment with associated formula for g. Right: Ball on incline experiment with associated formula for g.
Introductions to doing the experiments:
In order to save time on the day of the experiments, I've tried to sum up the essentials of the experiments in two short films:
PendulumExperiment2018.mp4 (9:51 min).
BallOnInclineExperiment2018.mp4 (12:37 min).
Software used for reading out gates in Ball on Incline experiment:
Instead of using an oscilloscope or LabView, FirstLab is now equipped with hardware devices (Analog Discovery 2 by Diligent), that allows you to read out the data directly to your computer (which acts as oscilloscope). The software that allows your computer to do this is called Waveforms, and instructions for the download and setup are here. It should be straight forward to install, but if you don't manage, then don't dispair. Just ensure that the others in your project group managed, as you should share the data within the group.
Example data sets:
The following data sets illustrates what to expect from your experiments, and they are provided in order to allow you to develop analysis code ahead of actually doing the experiments!
For illustrating the period measurement, you may let yourself be inspired by this figure.
Measurements to make:
Below is a list of measurements to make, all of which should of course have well determined uncertainties. Make sure that you report all the "raw" measurements you performed (i.e. for each group or group member), possibly with uncertainty, if one was available. Otherwise, you obtain the uncertainty from the RMS of the typically four independent (make sure they are!) measurements. Typically, all members of the group should do the measurements, and try to read lengths off to 1/2 - 1/10 millimeter.
And finally, you should of course combine your measurements to one value of g for each setup and compare the value and precision with a reference.
Writing up results:
The project should be written in Physical Review Letter style (or something close to it, if you don't like Latex) thus not more than 3-4 pages! You do not need to describe the experiments themselves (assume the reader is a fellow student, who has also done the experiments), but of course all measurements, details and results should be described, such that the reader can follow (i.e. calculate themselves) your results fully and reproduce what you have done.
You can find an example project (with results blacked out), which is generally very good, here: Project_Group24_BlackedOut.pdf.
Below you can find the files needed (works with pdftex as well, except for the figures, which needs to be converted into .pdf or .png), or you may use your own favorite article setup:
For each of the two results, I would like to see a table with the errors from each of the variables listed/measured. So for each variable used in determining g, list their value, their uncertainty, and their impact on g (i.e. if they were the only uncertainty on g, how large would it then be), so that one can compare source of error.
The group should send the project by mail in PDF format to me by Sunday the 13th of December, 22:00.
I would be happy, if you would give the file the logical name "Project_GroupX_Name1Name2Name3Name4Name5.pdf", where NameX is the first name of the group members.
In addition, we would like each person to submit their timing resolution and residuals, thanks.
If you are in doubt about what we are asking for, then the timing resolution is the RMS of your residuals, i.e. one number (for example 0.078 s), while the residuals are many (15-50 or so) numbers (for example 0.045, 0.083, 0.062, etc.).
The projects will be corrected by us, but you will also yourself be asked to consider one of the others projects. If you are in group N, then you should consider the project from group (N+1)-2*((N+1)%2), that is group 1 and 2 pair up, 3 and 4 pair up, etc..
Notes:
For measuring time to (better than) 1/100 of a second with lap time and the option of saving the result to a file on your computer, please use the following Python stop watch script: stopwatch_py3.py.

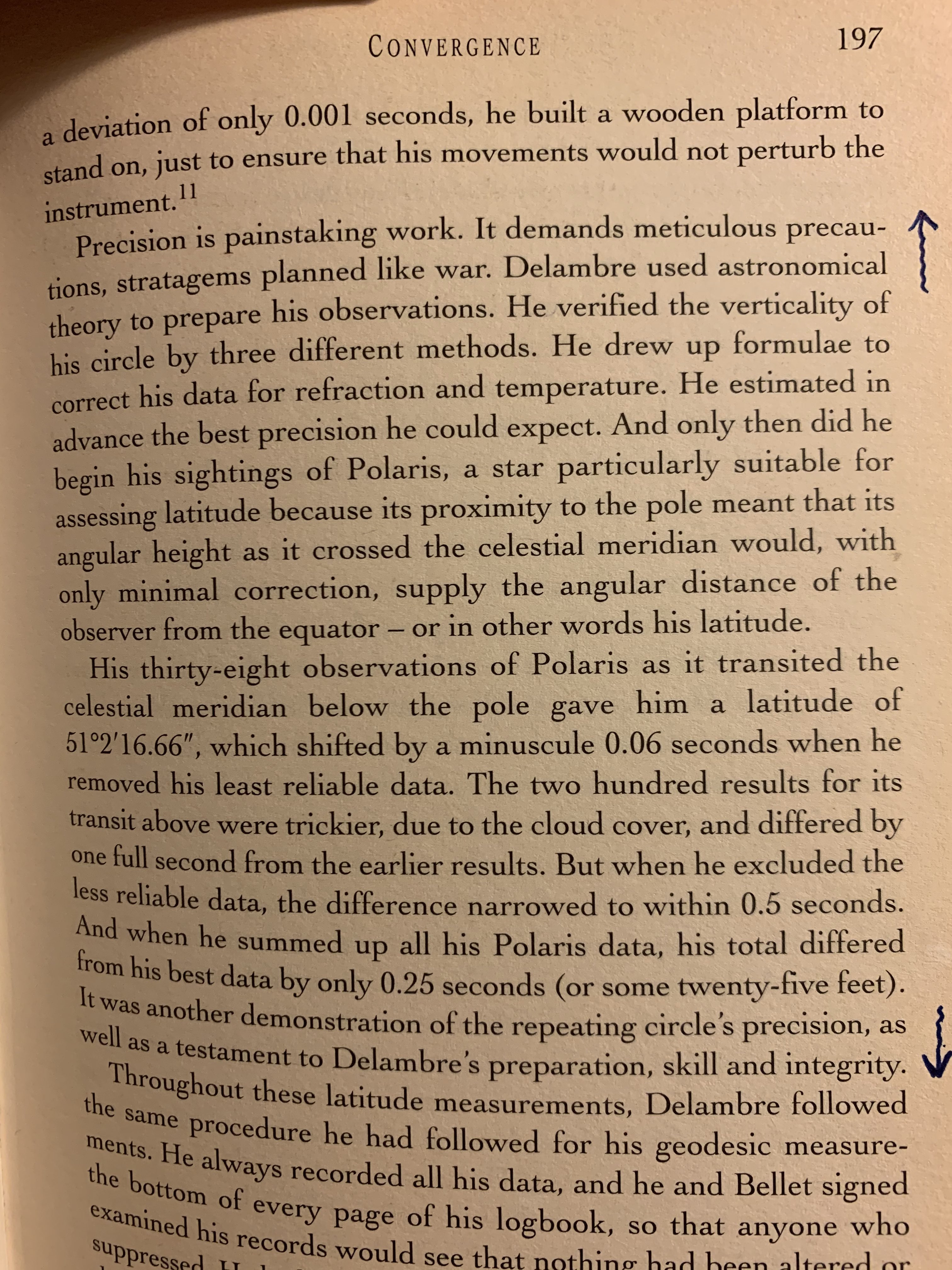

Many before you have struggled with precision measurements. In defining the meter, one of the two protagonist, Jean Baptiste Delembre is trying to make his measurement as accurate as possible. These 22 lines describe the delicacy of doing it well: Striving for precision, from "The Measure of All Things".
Comments:
Enjoy, have fun, and throw yourself boldly at the data.
Last updated: 26th of November 2020.
